Hollow insulators
Benefits
- Manufactured from the latest high-strength alumina porcelain C130 (IEC 60672)
- Hollow insulators can have a cylindrical, conical, or bulbous shape
- Overall length: single-piece 2800 mm/sectional up to 6000 mm
- Production and design entirely based on customer requirements and the local conditions
- Unusual geometries can also be produced
- Completely recyclable
- Service life of up to 60 years
Industry solution: OEM
- Circuit breakers (live tank breaker, dead tank breaker)
- Current transformers, voltage transformers, surge arresters, feed-throughs
Masters of adaptation to their environment

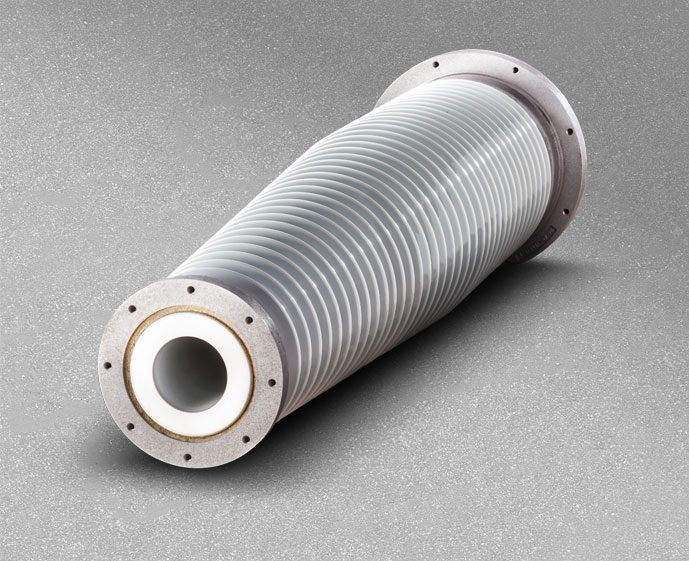

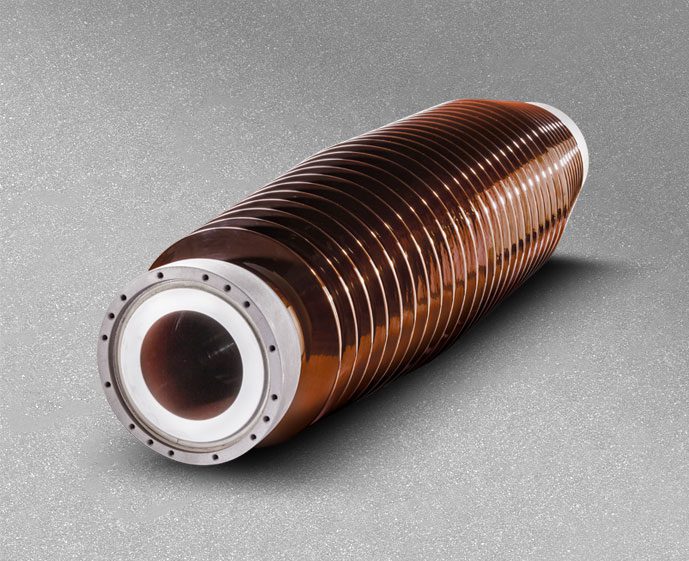

High-strength alumina porcelain C130 is also used for our ceramic hollow insulators. During manufacturing, these products can have a cylindrical, conical, or bulbous geometry, and lengths of up to 2800 mm for single-pieces.
The design of these hollow insulators is heavily influenced by customer requirements and depends on the environmental conditions at the future place of application. Thanks to our decades of experience and the latest manufacturing methods, even unusual geometries pose no problem for LAPP Insulators.
Dimensions
- Voltage level: 1 – 1100 kV
- Maximum overall length: 6000 mm (with bonding technology, 2800 mm single-piece)
- Maximum outer diameter: 640 mm
- Flexible creepage distance design of up to 40 mm/kV
- Conical shape (preferred for feed-throughs and “dead tank” switch porcelains)
- Cylindrical shape (preferred for “live tank” switch porcelains)
Manufacturing method
- Wet method
- In line with standard C130 (IEC 60672): High-strength alumina porcelain
- In line with standard C130 HS: Ultra-high strength
- Glaze colors: Brown RAL 8016 and gray ANSI 70
Manufactured in line with the following standards:
- IEC 62155
- IEC 60672
- IEC TS 62371
